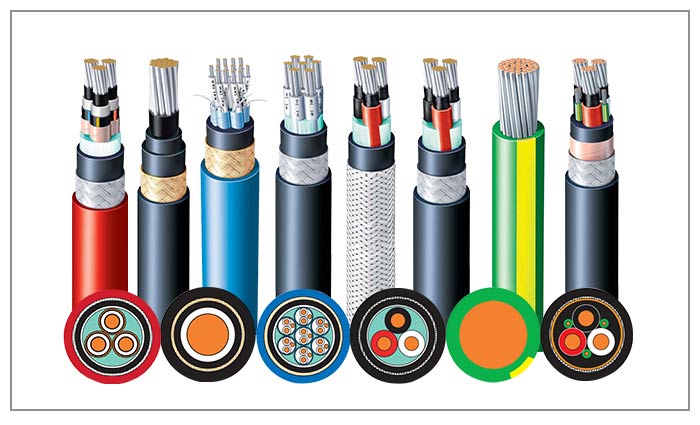

Marine Cable
Marine cable also called shipboard cable, which requires quality and conformity to the highest maritime standards. Grand Ocean Marine has been a global supplier of the world’s shipbuilding industry, we provide a wide range of tinned marine cable and ship cable, including power cable, VFD cable, control cable, telecommunication cable, and switchboard wire. All of our marine cables have obtained ABS, BV, LR, DNV-GL, NK, KR, RS certificates.
Our marine grade cables are able to achieve and maintain high performance in harsh conditions of heat, cold, humidity, oil, vibration and salt corrosion, etc. In order to safeguard the safety and health of the crew working on shipboard, grand ocean marine has also developed marine shipboard cable with flame retardant, low smoke, zero halogens (LSZH) and fire resistant capabilities.
Marine Power Cable
Marine power cable also names marine electrical cable. It is designed for power, lighting and control systems up to 0.6/1kV. It is suitable for fixed installation of marine, shipboard and offshore application.
Marine VFD Cable
Marine variable frequency drive (VFD) cable is designed to carry power from AC drive systems to AC motors. Rating voltage is 0.6/1kV or 1.8/3kV. Marine VFD cable has outstanding electromagnetic compatibility.
Marine Control Cable
The marine control cable is designed for control systems for marine and shipboard up to 150/250V. It is flame retardant, low smoke, halogen-free. Fire resistant cable as a request. It can be an overall screen or individual screen.
Marine Telephone Cable
Marine telephone cable is also called marine signal cable. It is twisted pair or triple pair, which is designed for telecommunication and information proceeding systems of marine and shipboard. Rating voltage is 150/250V.
Flexible Marine Wire
Flexible marine wire is class 5 copper wire conductor and XLPE or PVC insulation. It is intended for connection between electrical equipment and switchboard or switch on shipboard. Rating voltage is up to 0.6/1kV.
Marine Data Cable
Marine data cable also called marine ethernet cable, is designed for data transmission, and network for marine shipboard and offshore application. The cable types includes Cat 5E S/FTP, Cat 6A S/FTP, Cat 7 S/FTP 4 pairs.
We're Proud To Have the Full Set Of Certifications For Our Marine Equipment
Your Professional Manufacturer of Marine Cable & Shipboard Cables from China
Grand Ocean Marine specializes in supply marine cable, shipboard cable, marine shipboard cable, ship cable, ship wiring cable, offshore cable, rubber cable, XLPE cable, PVC cable, EPR CSP cable, marine flexible cable, marine wire, tinned cable, welding cables, marine electrical cable, marine power cables (low voltage, medium voltage and high voltage), electrical submersible pump cables, boat cable, etc.
1. What is marine cable?
Marine cable requires high quality and conformity to the highest maritime standards. It is used for installations in ships and offshore platforms for electrical power distribution to panels, lighting, control circuits, critical instrumentation signals, telephone, etc.
The marine cables are utilized abroad on many different kinds of crafts including drilling rigs, cruise, naval and vessels. The range of marine cables include:
- Transmission
- Communication
- Instrumentation
- Power
- Control
Marine cables need to perform at most ensuring reliability and safety for both passengers and cargo. There are many types/standards of marine cables which are designed and manufactured according to the requirements of crafts. The cables are usually used tinned copper wire conductor, insulation and armored to bear the sea environment and extreme challenges.
2. Marine cable standards
- IEC 60092 standard
- JIS C 3410 standard
- DIN 89158 / 159 / 160
- BS 6883 & BS 7917
- NEK 606 standard
- VG 95218 standard
- UL1309 standard
- IEEE 1580 type P
3. Marine cable specification
Conductor: Stranded tinned copper wire,class2 or class 5
Fire resistant Layer: Mica tape (Fire resistant type)
Insulation: XLPE / EPR
Filler ( if necessary)
Tape
Inner sheath: PO / PCP / CSP / PVC
Armor: tinned copper wire braided/galvanized steel wire braided
Outer sheath: PO( SHF 1, SHF2) / PVC
4. Marine cable sizes
Power & control cable
Cores number: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37,48
Nominal Cross-section Areas: 1.0sqmm, 1.5sqmm, 2.5sqmm, 4.0sqmm, 6.0sqmm, 10sqmm,16 mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm²,185mm², 240mm², 300mm²
Telecommunication & Signal cable
Cores (in pairs or triples): 1, 2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 0.75sqmm, 1sqmm, 1.5sqmm, 2.5sqmm
5. Chinese marine cable code designation
| Structure | Letter | Designation |
| Code of Series | C | Marine Electrical Cable |
| CK | Marine Control Cable | |
| CH | Marine Telephone Cable | |
| CBP | Marine VFD / EMC Cable | |
| CB | Marine Wire | |
| Insulation | J / YJ | XLPE |
| E | EPR | |
| Y | Polyolefin | |
| Inner Sheath | PJ | PO SHF2 |
| PF | PO SHF1 | |
| F | PCP | |
| H | CSP | |
| V | PVC | |
| Armor | 8 | Tinned Copper Wire Braided |
| 9 | Galvanized Steel Wire Braided | |
| Outer Sheath | 5 | PO SHF2 |
| 6 | PO SHF1 | |
| 2 | PVC | |
| 0 | Non-sheath | |
| Screen | P | Individual Screen |
| Combustion Property | SC | Halogen Free, Low Smoke, Flame Retardant |
| NC / NSC | Halogen Free, Low Smoke, Flame Retardant, Fire Resistant | |
| SA | Flame Retardant, Have Smoke, Acidity | |
| NA | Fire Resistant, Flame Retardant, Have Smoke, Acidity |
6. Meaning of Chinese marine cable types
| Item | Cable Types | Description |
| 1 | CJPF/SC | XLPE insulation SHF1 sheathed non-armored marine power cable |
| 2 | CJPJ/NC | XLPE insulated SHF2 sheath fire resistant marine electrical cable |
| 3 | CEFR | Class 5 copper conductor EPR / PCP marine flexible cable |
| 4 | CEHR | Flexible tinned copper wire conductor, EPR CSP cable marine |
| 5 | CJ86/SC | XLPE insulation, tinned copper wire braid armored marine cable |
| 6 | CJ85/NC | XLPE insulation, TCWB screened, SHF2 sheath fire resistant cable |
| 7 | CJPF86/SC | XLPE / SHF1 / TCWB / SHF1 cable lshf and flame retardant |
| 8 | CJPJ95/SC | XLPE / SHF2 / GSWB / SHF2 LSZH marine electrical cable |
| 9 | CEPF86/SC | EPR / SHF1 / TCWB / SHF1 LSHF marine power cable |
| 10 | CJPF96/SC | XLPE / SHF1 / GSWB / SHF1 armoured marine electrical cable |
| 11 | CEV92/SA | EPR insulation PVC sheathed steel wire braid armored cable marine |
| 12 | CHJ86/SC | Twisted pair tinned copper wire braided screen marine telephone cable |
| 13 | CHJP86/SC | Individual screen flame retardant marine communication cable |
| 14 | CBVR | Flexible tinned copper conductor PVC insulation tinned marine wire |
| 15 | CBYJR | Class 5 copper conductor XLPE HF90 insulated marine electrical wire |
7. Marine cable features
- Flame retardant
- Low smoke
- Zero Halogen
- Fire resistant
- Light Weight
- Water Block
8. Marine cable related products
9. Marine Type approval certificates
10. Packaging & delivery
Normally marine cable & wires are packed by cable reel/drum.
Or in rolls, then packed by wooden cartons.
All cable drums and cartons meet export requirements.
(Packing length can be cut as customer’s request.)
Till now, our marine cable & wires already delivery to UK, USA, India, Vietnam, Singapore, Dubai, UAE, The Philippines, Indonesia, Malaysia, China, Sri Lanka, South Korea, Jordan, Japan, Australia, Thailand, Spain, Greece, Italy, Croatia and Cities like Jakarta, Hong Kong, Manila, Shanghai, Mumbai, Ho Chi Minh City, Chennai, Colombo, Aqaba, Perth, Bangkok, etc.
